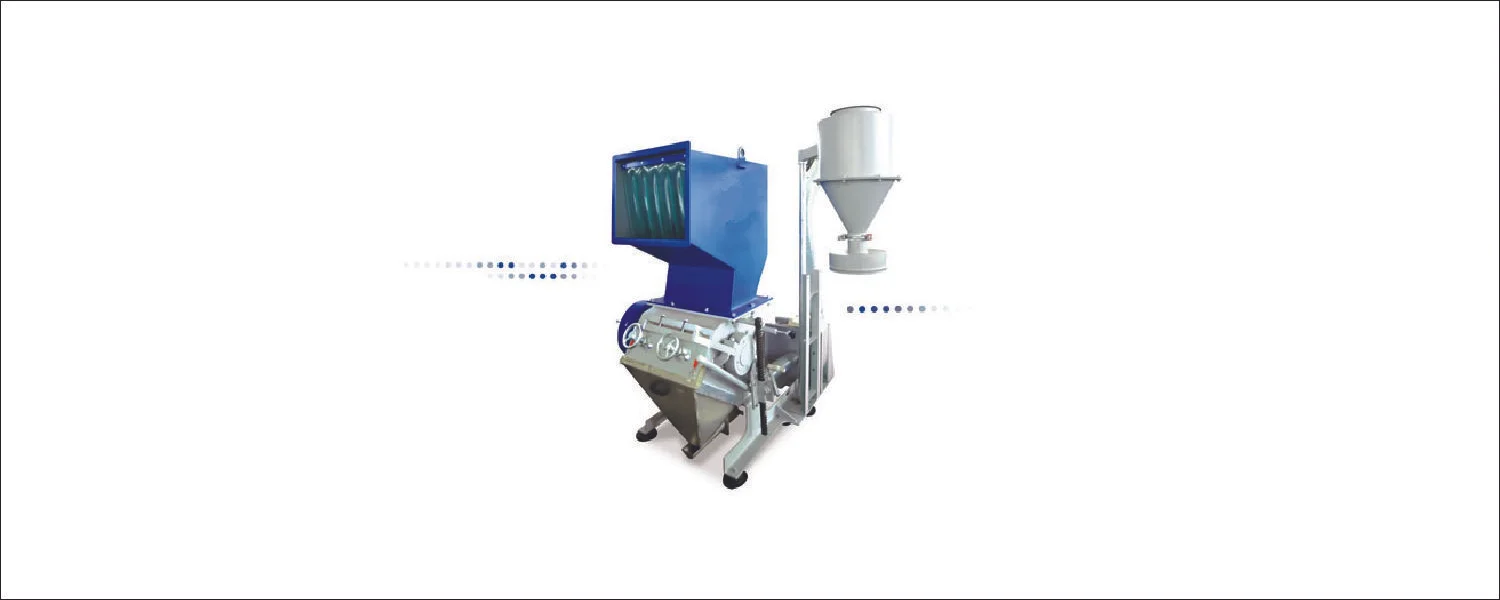

ZERMA's GSE Economical Plastics Granulators have multiple rotor designs available in 300 mm to 700 mm diameters and widths from 300 mm to 1400 mm. The completely welded cutting chamber, in conjunction with the V-type rotor design, ensures dependable operation and universal application use. Offering quick and easy cutting chamber access during rotor and stator knife or screen changes and maintenance. Our Economical beside the press plastics granulators housings have been masterfully designed.

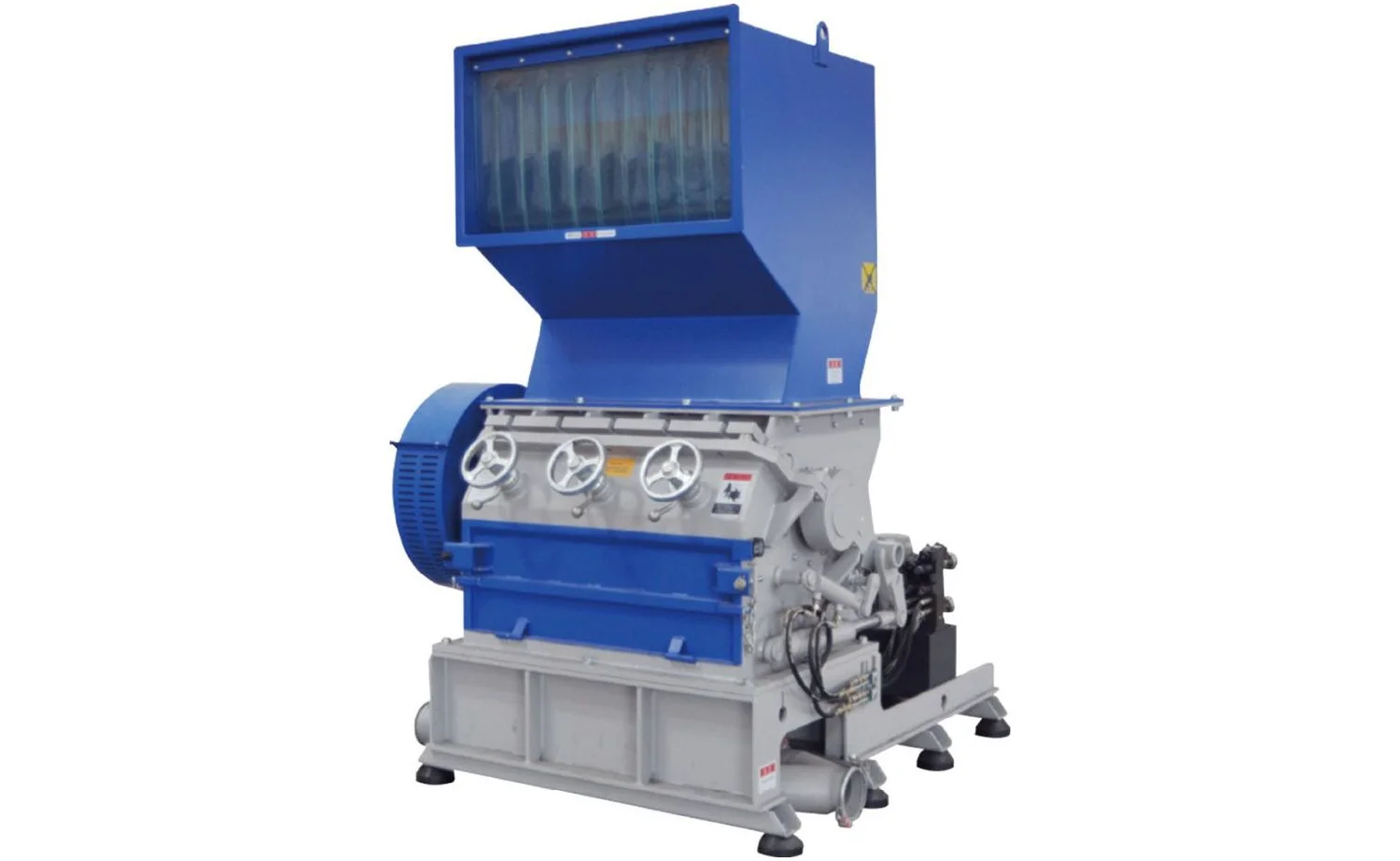

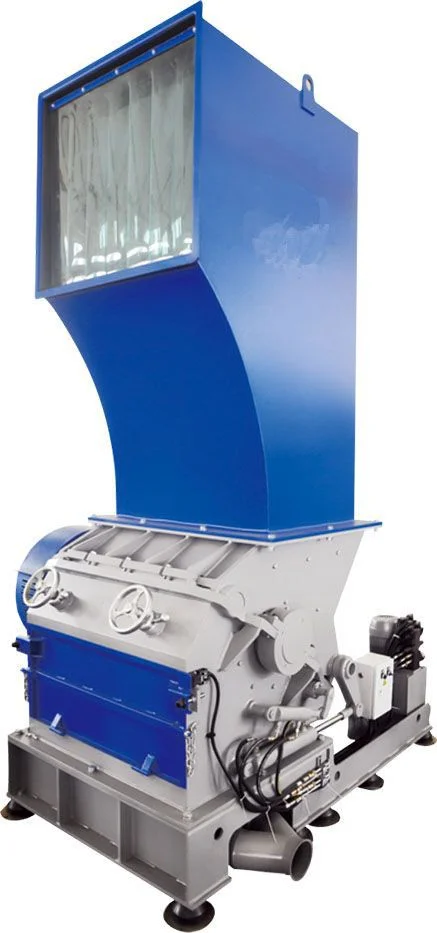

ZERMA GSE Series Economical Plastics Granulator are economically-designed for use as a beside the press, medium-volume or central granulator. The cutting geometry of the GSE 300 makes it ideal for the grinding of small thin-walled hollow parts. Additional, the GSE 500 can handle even bigger hollow parts to be ground, and the GSE 700 central granulators can grind voluminous materials. Furthermore, our GSE-Series Economical Plastics Granulator products a high-quality regrind independent of the material type or form such as plastics injection molded parts, plastics blow-molded parts, profiles, sheets, film, along with much more.

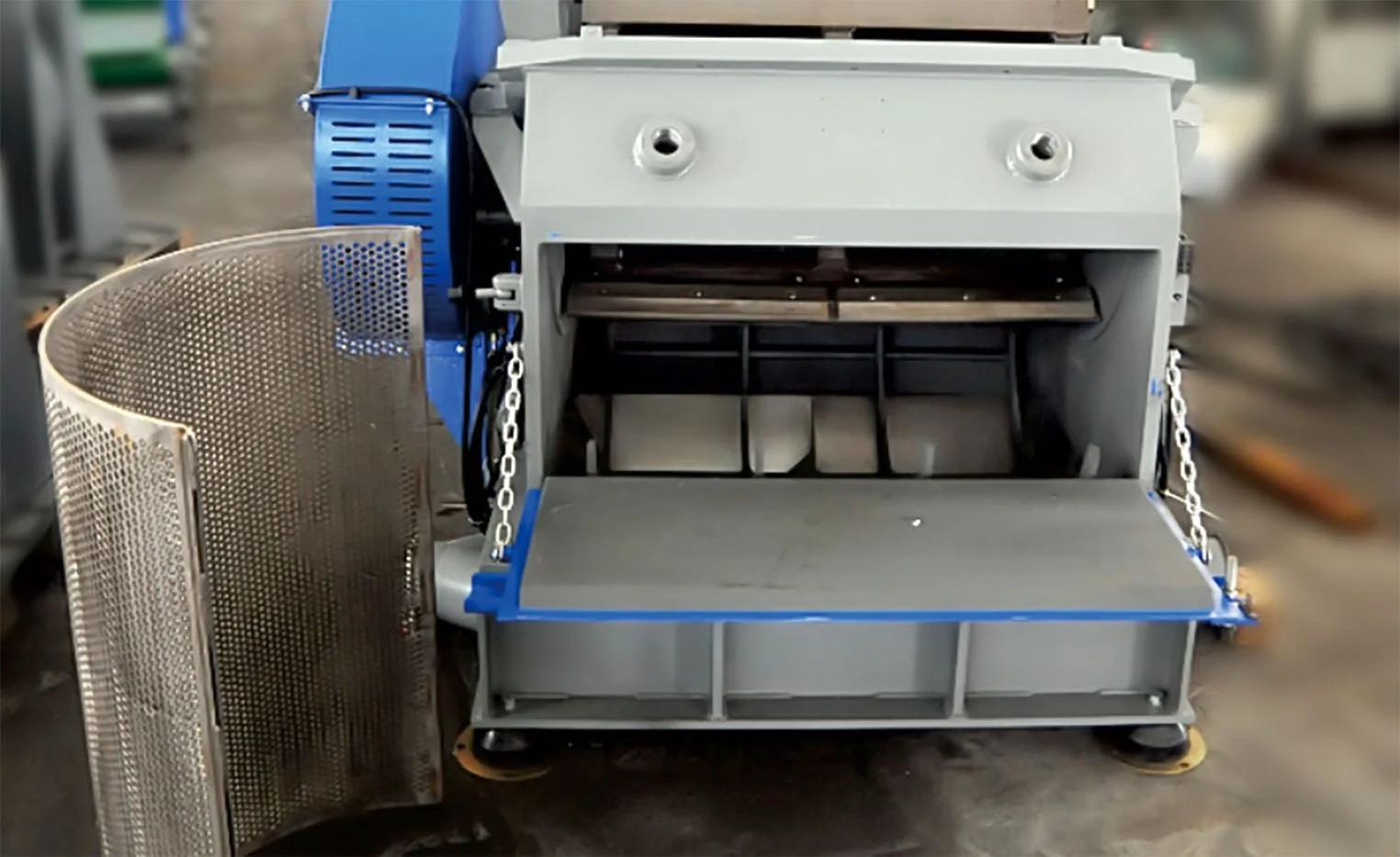

Quick and Easy Access
V-cut Rotor Technology
External Knife Adjustment
GSE 300 Series | GSE 300/300 | GSE 300/600 | GSE 300/1000 | |
---|---|---|---|---|
lbs/hr | ||||
Rotor Diameter | mm | 300 | 300 | 300 |
Rotor Width | mm | 300 | 600 | 1000 |
Drive Capacity | kW | 7.5 | 11 | 18.2 |
Rotor Knives | row | 3 | 3 | 3 |
Stator Knives | rows | 2 | 2 | 2 |
Screen Size | mm | >6 | >6 | >6 |
Effective Working Area | mm x mm | 400 x 290 | 400 x 590 | 400 x 990 |
Weight (approx.) | kg | 900 | 1000 | 1300 |
Dimensions | ||||
A | mm | 1760 | 1810 | 1370 |
B | mm | 460 | 460 | 460 |
C | mm | 1420 | 1420 | 1420 |
D | mm | 300 | 590 | 990 |
E | mm | 1085 | 1350 | 1540 |
GSE 500 Series | GSE 500/500 | GSE 500/700 | GSE 500/1000 | GSE 500/1400 | |
---|---|---|---|---|---|
lbs/hr | |||||
Rotor Diameter | mm | 500 | 500 | 500 | 500 |
Rotor Width | mm | 500 | 700 | 1000 | 1400 |
Drive Capacity | kW | 30 | 37 | 45 | 55 |
Rotor Knives | rows | 3 or 5 | 5 | 5 | 5 |
Stator Knives | rows | 2 | 2 | 2 | 2 |
Screen Size | mm | >6 | >6 | >6 | >6 |
Effective Working Area | mm x mm | 500 x 500 | 500 x 700 | 500 x 990 | 500 x 1400 |
Weight (approx.) | kg | 1500 | 1750 | 3100 | 3900 |
Dimensions | |||||
A | mm | 1675 | 1675 | 1900 | 1900 |
B | mm | 580 | 580 | 580 | 540 |
C | mm | 1840 | 1840 | 1840 | 1880 |
D | mm | 515 | 715 | 990 | 1430 |
E | mm | 1130 | 1330 | 1645 | 2120 |
GSE 700 Series | GSE 700/700 | GSE 700/1000 | GSE 700/1400 | |
---|---|---|---|---|
lbs/hr | ||||
Rotor Diameter | mm | 700 | 700 | 700 |
Rotor Width | mm | 700 | 1000 | 1400 |
Drive Capacity | kW | 45 | 55 | 55 |
Rotor Knives | rows | 5 or 7 | 5 or 7 | 5 or 7 |
Stator Knives | rows | 2 | 2 | 2 |
Screen Size | mm | >6 | >6 | >6 |
Effective Working Area | mm x mm | 720 x 700 | 720 x 990 | 720 x 1400 |
Weight (approx.) | kg | 2840 | 3530 | 4500 |
Dimensions | ||||
A | mm | 2050 | 2050 | 2205 |
B | mm | 780 | 780 | 740 |
C | mm | 2040 | 2040 | 2000 |
D | mm | 715 | 985 | 1430 |
E | mm | 1400 | 1670 | 2120 |
