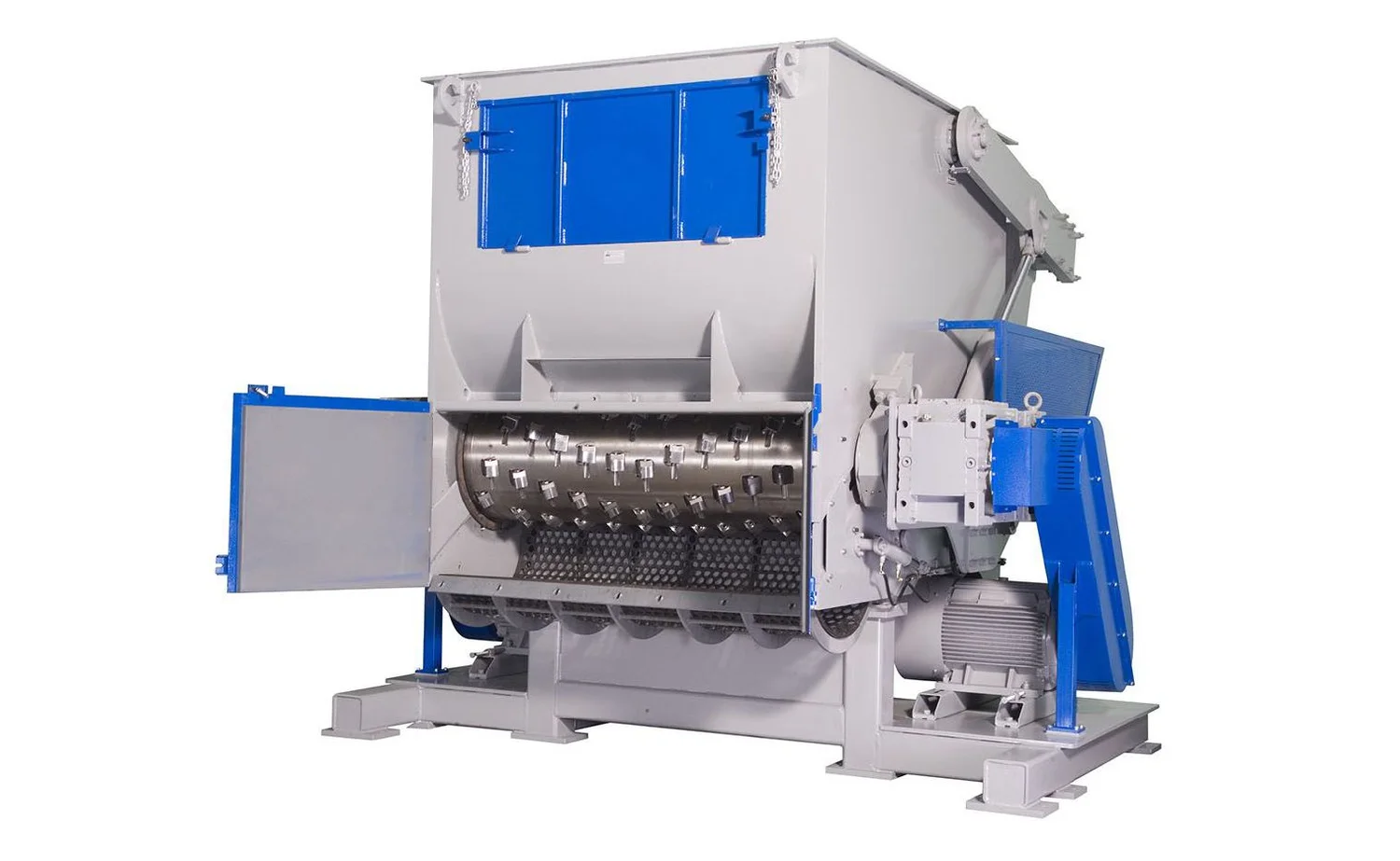

The ZXS Series Heavy-duty Industrial Shredders are single shaft shredders with a powerful two-speed swing ram design eliminating the risk of blocking and wearing out of the internal guide rails. It is very versatile, can shred all kinds of input materials, and is well-suited for different industries. The single shaft shredders are equipped with a 750 mm diameter rotor in widths from 1500 mm to 3000 mm and is driven by two oversized gearboxes. Its low speed of 45 rpm guarantees a high torque and smooth operation. The hydraulic power pack is well integrated into the shredder housing to save space and protect it from damage, but still easy to access or remove for maintenance. The proven E-type rotor, knife holder and knife designs are taken to new dimensions to conquer the most demanding applications and challenges. The heavy duty industrial shredders can be tailored to various applications with advanced controls and hydraulics, hard facing, and other wear options.
The ZXS Series Heavy Duty Industrial Shredders have been designed for the most demanding and high throughput applications in plastics recycling industries. The input materials can be all types of plastics, wood, paper, cardboard, e-waste, post-consumer waste, rubber, etc. in various shapes and sizes. Typical input materials are fridges, purges, tires, pallets, bales, drums, barrels, pipes, and film. The output material size is determined by the installed screen size and, except in some RDF (refuse-derived fuels) and wood applications, the output material may need to be processed further to achieve the desired final size. For the recycling of complete truck and tractor tires, the ZXS-T model is configured with special wear protection and knives.
High-powered, Twin-speed Hydraulic System
Rotor Knife
Hydraulic Rotor Screen Cradle
ZXS Series | ZXS 1500 | ZXS 2000 | ZXS 3000 | |
---|---|---|---|---|
lbs/hr | ||||
Rotor Diameter | mm | 750 | 750 | 750 |
Rotor Width | mm | 1500 | 2000 | 3000 |
Rotor Speed | rpm | 46 | 46 | 46 |
Drive Capacity | kW | 2 x 75 | 2 x 90 | 2 x 110 |
Rotor Knives | pcs | 76 | 96 | 136 |
Stator Knives | rows | 1 | 1 | 1 |
Ram Feeder Drive | kW | 11 | 11 | 11 |
Screen size | mm | >60 | >60 | >60 |
Cutting Chamber Volume | m3 | 7.75 | 9.67 | 13.5 |
Effective Working Area | mm x mm | 1500 x 1440 | 1500 x 1840 | 1500 x 2640 |
Weight (approx.) | kg | 17000 | 20200 | 27000 |
Dimensions | ||||
A | mm | 3580 | 3580 | 3580 |
B | mm | 935 | 935 | 1015 |
C | mm | 3420 | 3420 | 3670 |
D | mm | 2540 | 2540 | 2540 |
E | mm | 1620 | 2020 | 2820 |
F | mm | 3560 | 4100 | 5070 |
