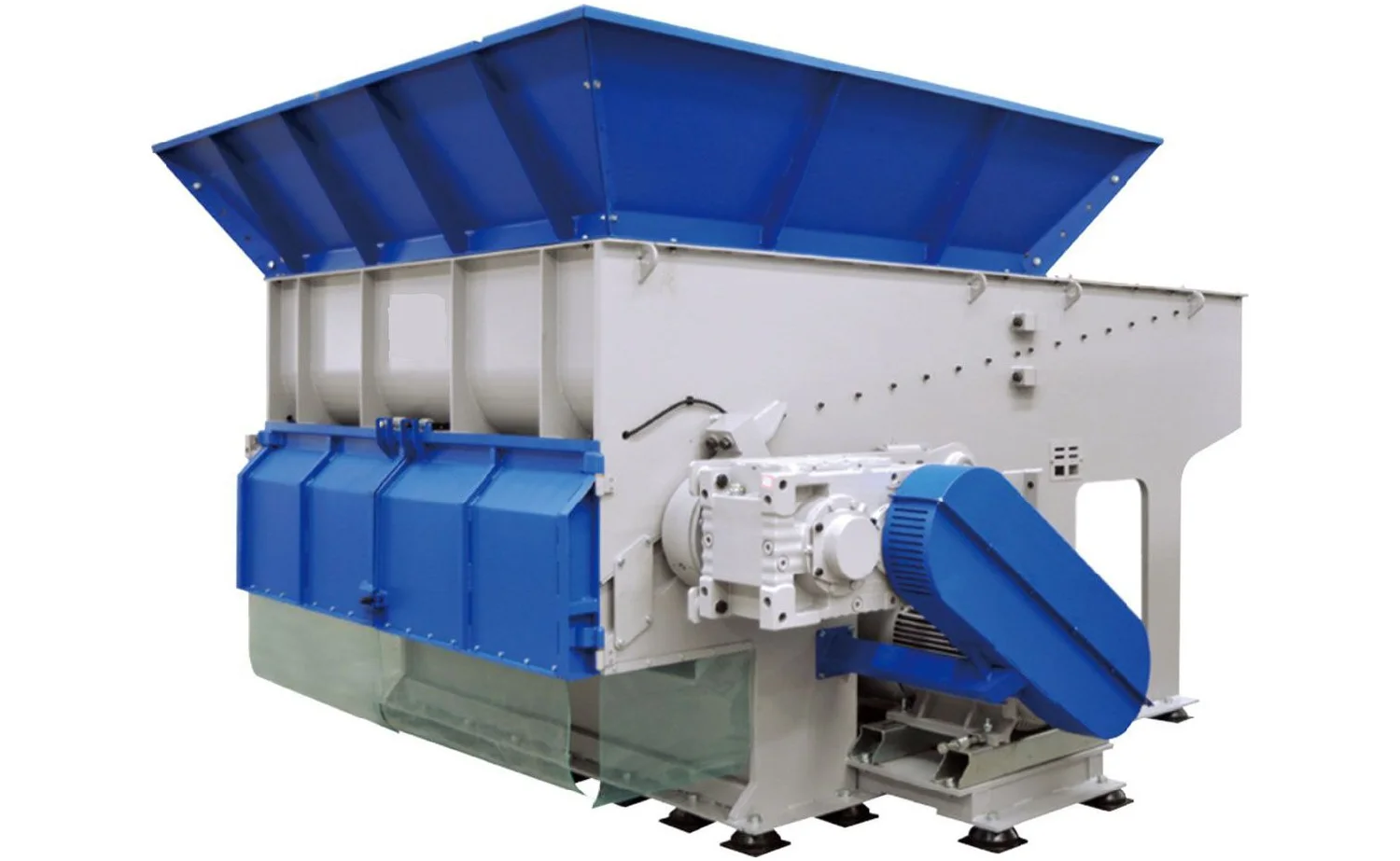

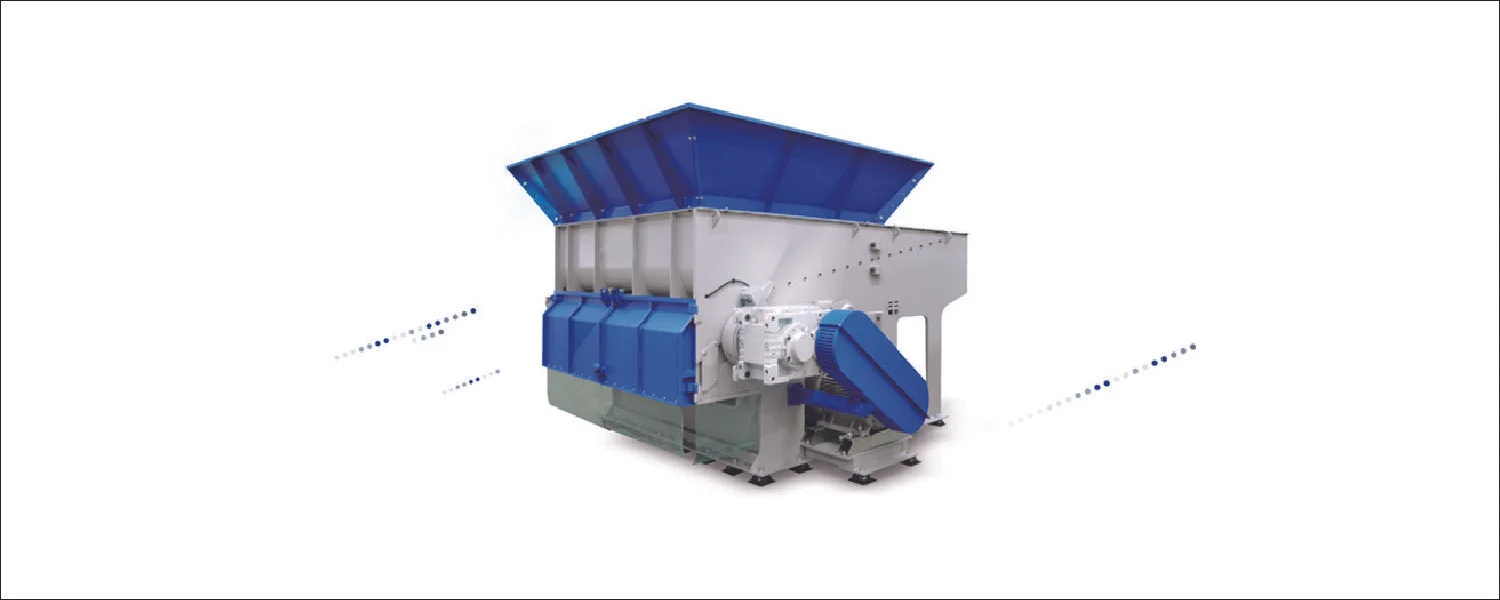

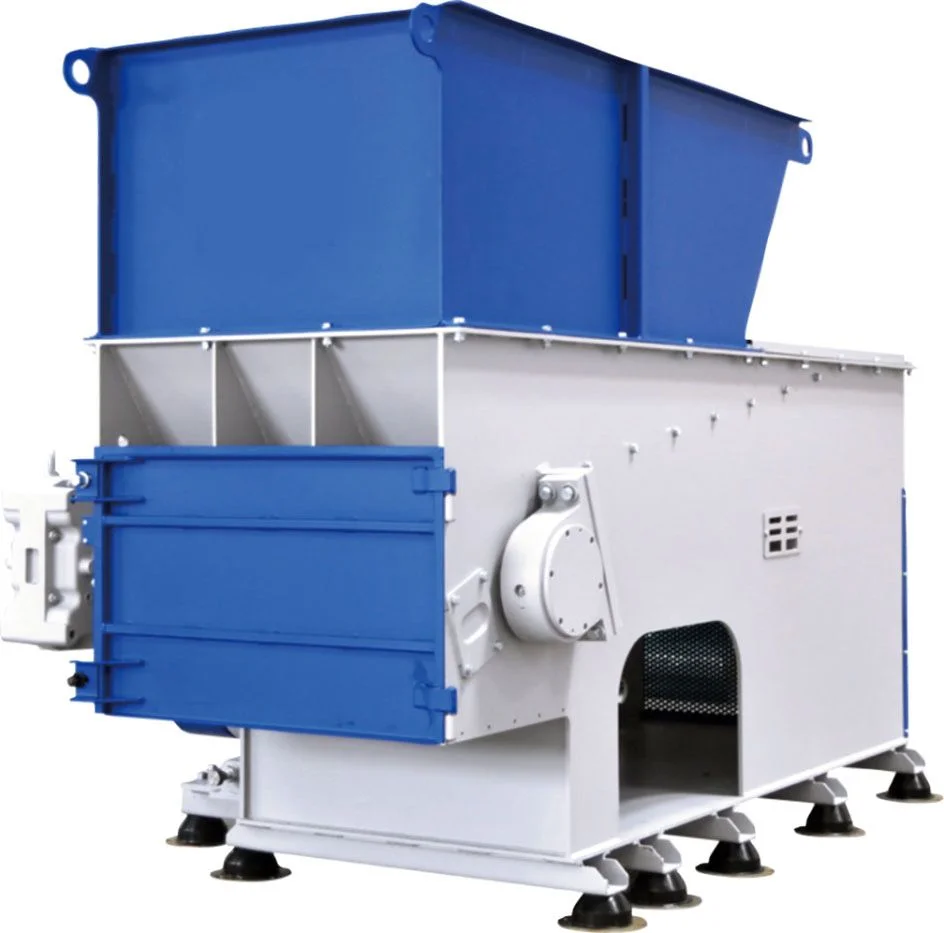

The ZERMA ZHS Series of industrial horizontal shredders are a single-shaft shredder featuring an angled hydraulic ram suitable for a wide range of material shapes and sizes. It is equipped with a 600 mm diameter E-type rotor and knife holder fixing system and is available in widths from 1500 mm to 2600 mm. The final material size is determined by the screen which can easily be changed based on requirements. The ZHS Series shredder can be tailored to fit your recycling requirements, this includes different drive powers, knife configurations as well as discharge options.
The ZHS Series shredders provide an economical solution for recycling of plastics, wood, paper, and general waste streams. The industrial horizontal shredders have been engineered for strength and reliability in daily operation. These shredders can easily be integrated into complete lines with other ZERMA products and accessories such as conveyors, granulators, etc.

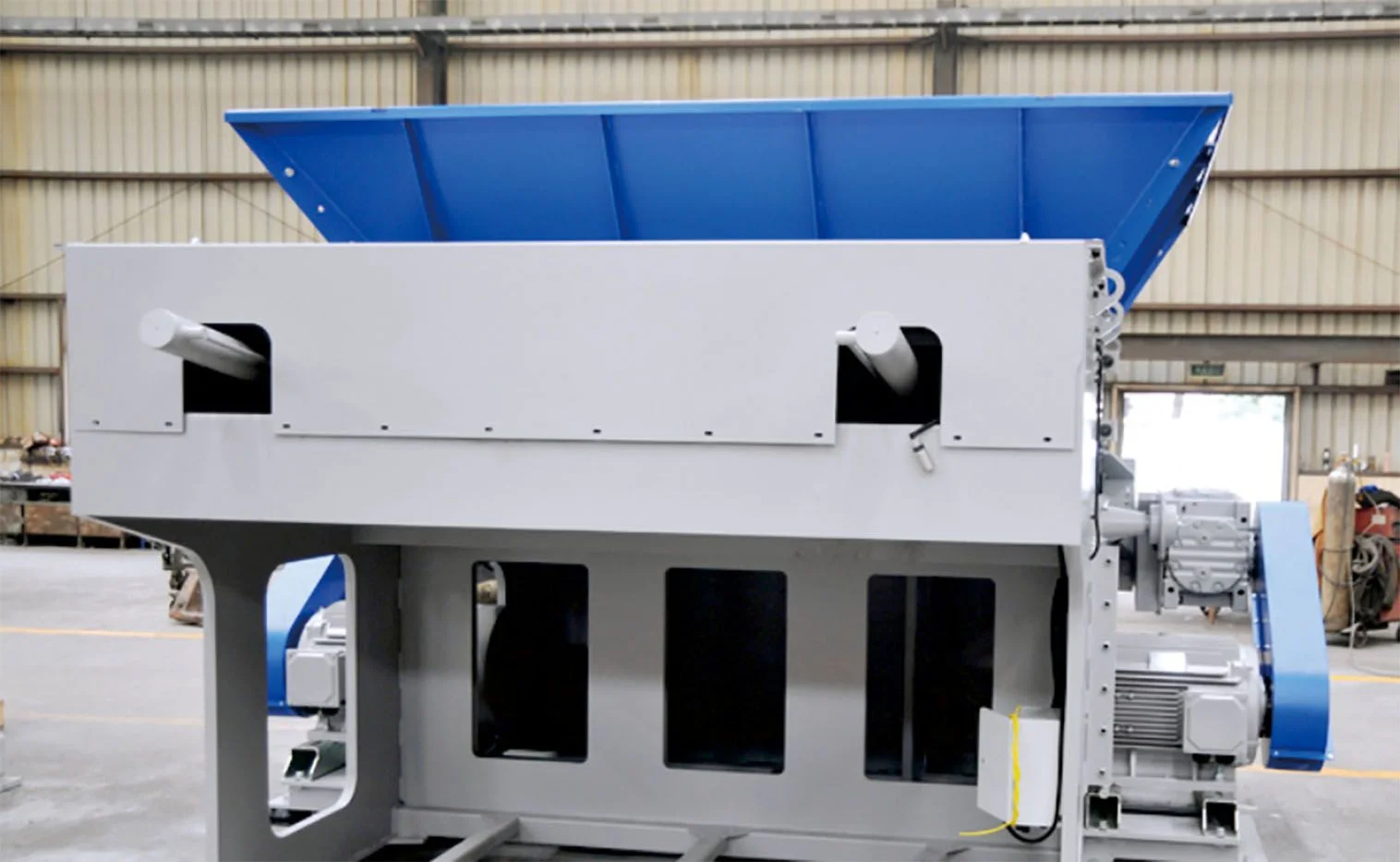

Angled Hydraulic Pusher

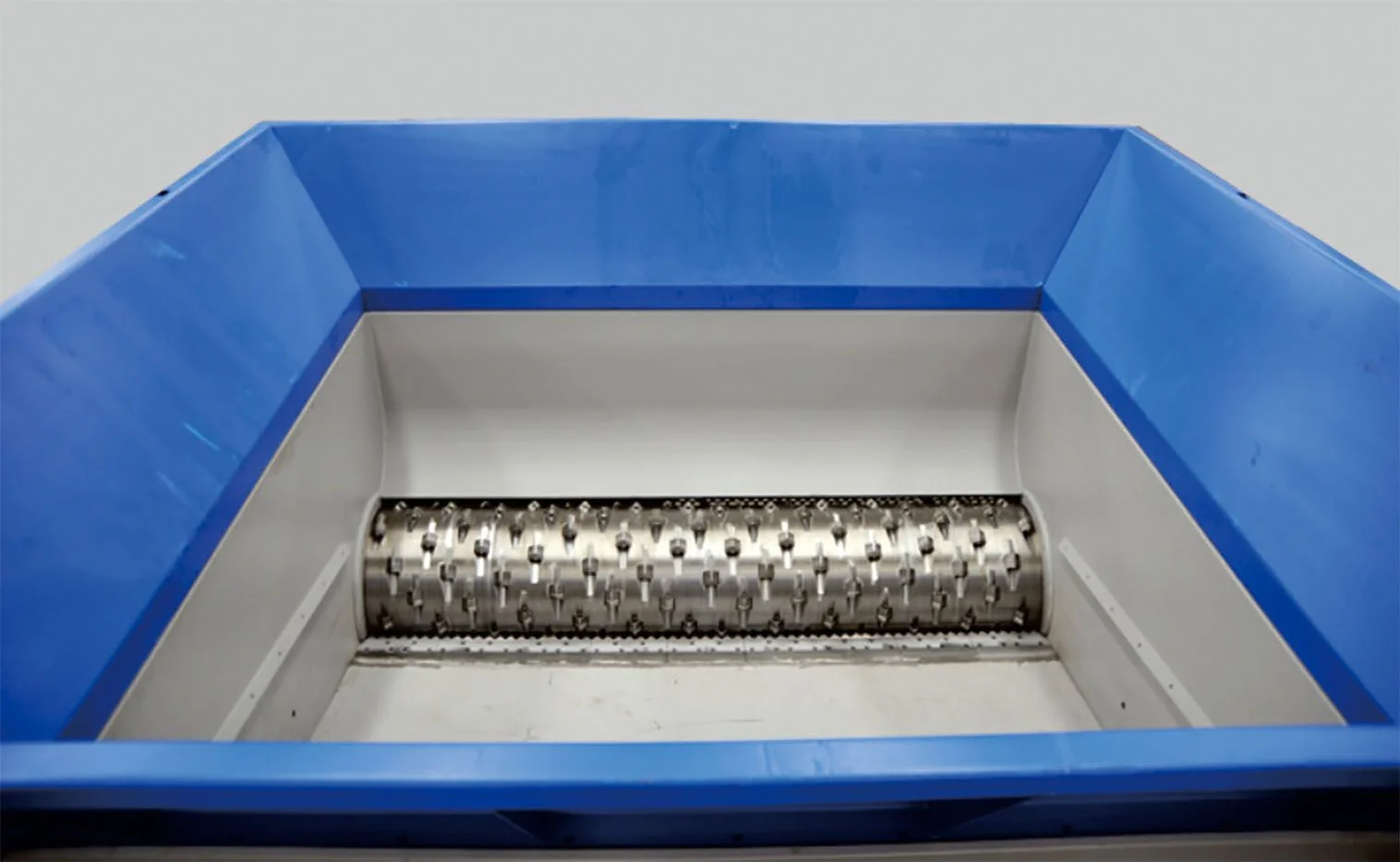

Large Feeding Hopper

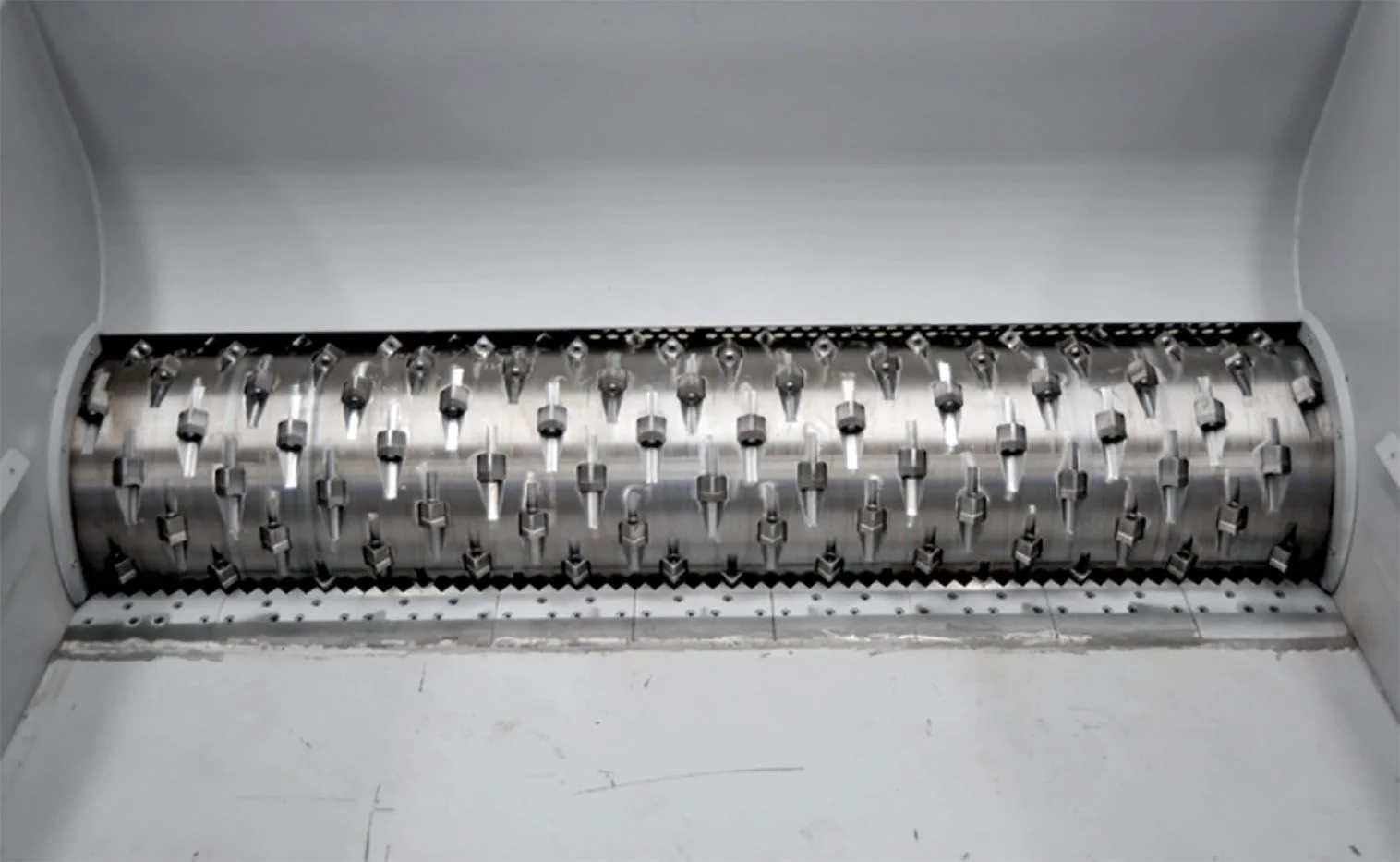

E-type Rotor
ZHS Series | ZHS 1500 | ZHS 2000 | ZHS 2600 | |
---|---|---|---|---|
lbs/hr | ||||
Rotor Diameter | mm | 600 | 600 | 600 |
Rotor Width | mm | 1400 | 1960 | 2520 |
Rotor Speed | rpm | 104 | 104 | 104 |
Drive Capacity | kW | 90 or 110 | 110 or 2 x 75 | 2 x 90 or 2 x 110 |
Rotor Knives (34 x 34) | pcs | 68 or 102 | 96 or 144 | 124 or 186 |
Rotor Knives (50 x 50) | pcs | 35 or 57 | 54 or 81 | 70 or 105 |
Stator blades | pcs | 5 | 7 | 9 |
Ram Feeder Drive | kW | 5.5 | 5.5 | 5.5 |
Cutting chamber volume | m3 | 1.4 | 2 | 2.6 |
Screen Size | mm | >40 | >40 | >40 |
Effective Working Area | mm x mm | 1320 x 1340 | 1880 x 1500 | 2440 x 1500 |
Weight (approx.) | kg | 12000 | 14000 | 16000 |
Dimensions | ||||
A | mm | 4420 | 4650 | 4650 |
B | mm | 455 | 455 | 595 |
C | mm | 2700 | 2740 | 2740 |
D | mm | 1855 | 2050 | 2040 |
E | mm | 1420 | 1980 | 2540 |
F | mm | 2830 | 3890 | 4425 |
