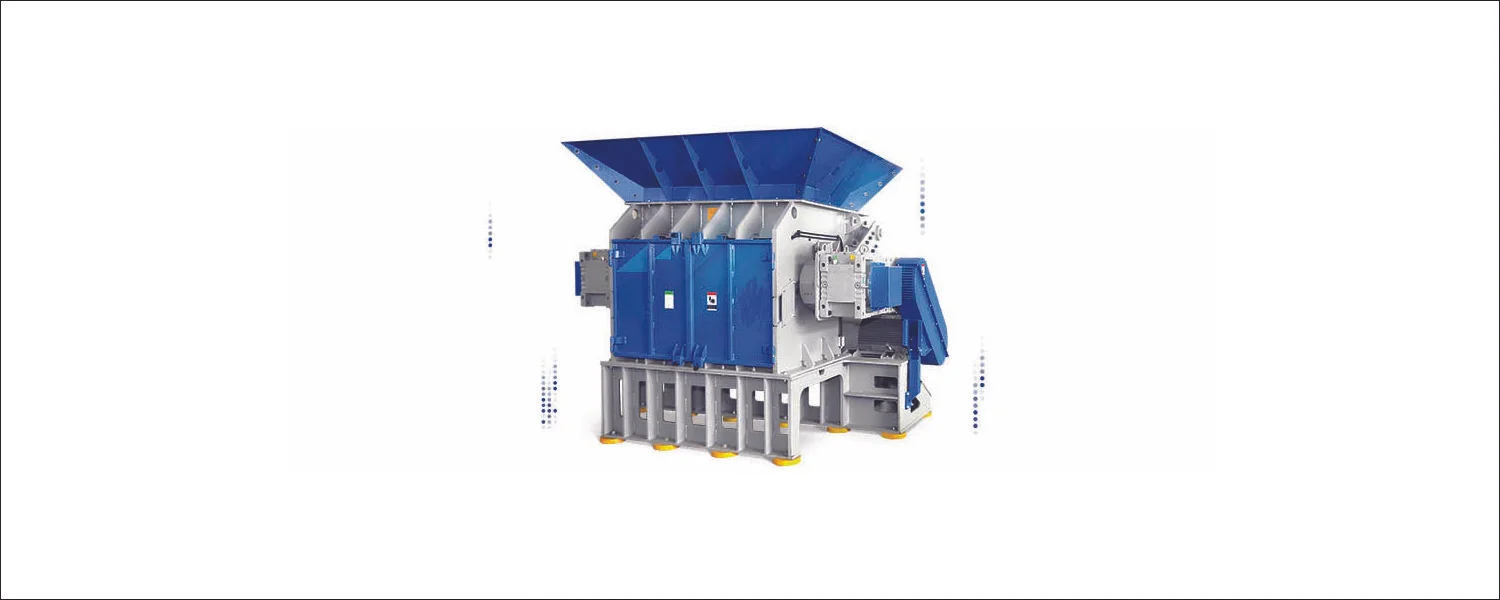

The ZERMA ZXS -T Series Industrial Tire Recycling Shredders are single-shaft shredder is specially designed to process complete or pre-shredded tires. It features a 750 mm diameter hard-faced rotor with special knives and wear plates made of highly wear-resistant steel. The shredder is available in rotor widths from 1500 mm to 3000 mm. They are driven by twin gear drives with oversized outboard bearings. The tangential infeed ensures optimal feeding of the tires while eliminating the need for a hydraulic feeding system. The T-series differ from our other shredders in the number of stator knives and the screen sizes used. Its modular design makes it easy to integrate the shredder into existing installations.
The ZXS-T Series shredder with its single row of stator knives is used to pre shred complete car tires or large pieces of pre-processed truck tires down to a size of approximately 150 mm. The twin rows of stator knives and screen enable the shredder to process the tire shreds down to any required size >20 mm. The shredder’s unique design and variable cutting gap create an optimal separation of rubber and steel when paired with a 20 mm screen. As a result, the steel can be removed easily with magnetic separation equipment in following processes. The shredder can be used in the processing of RDF and other alternative fuel applications as well.

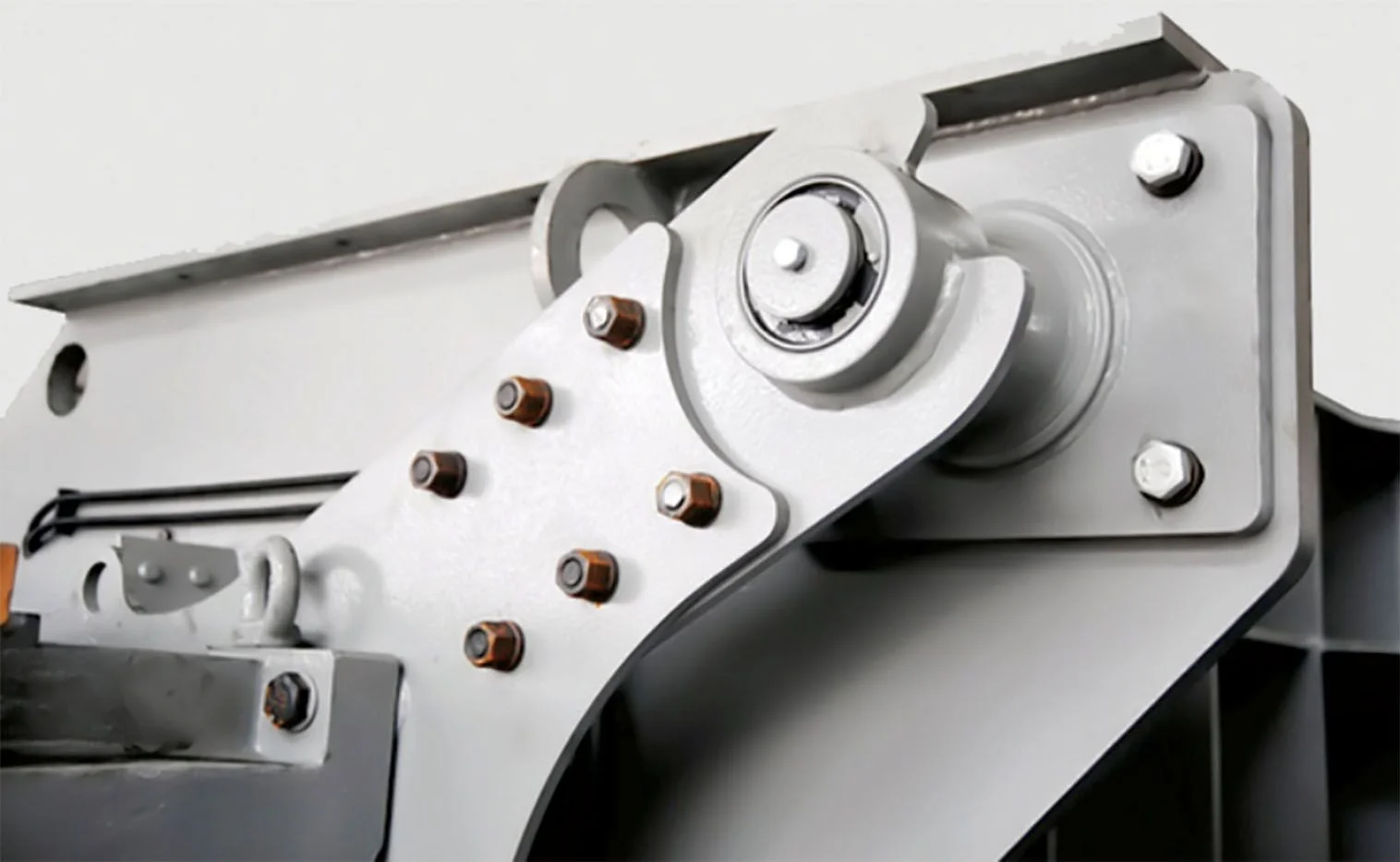

Sturdy Torque Arm

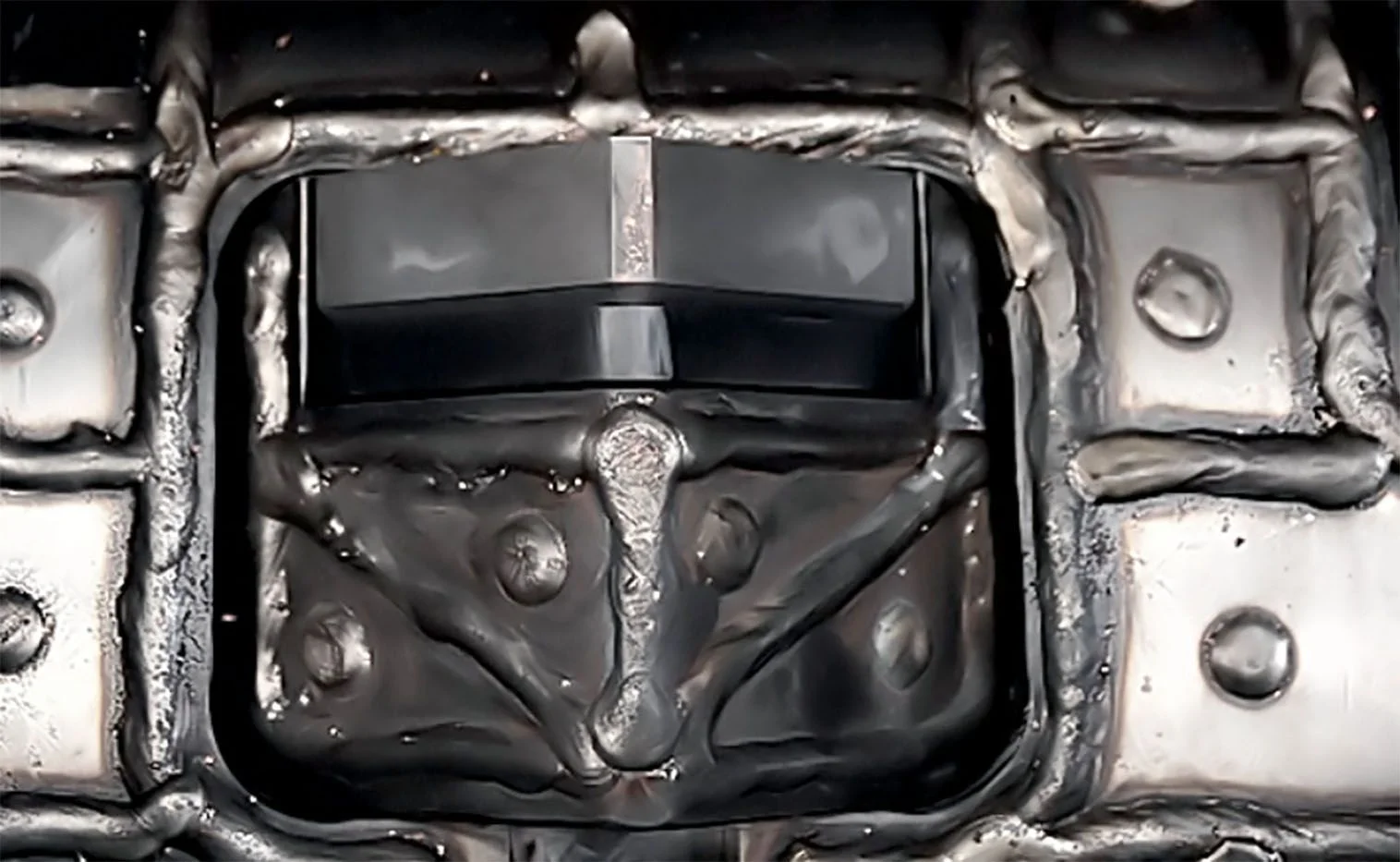

Wear-resistant Steel

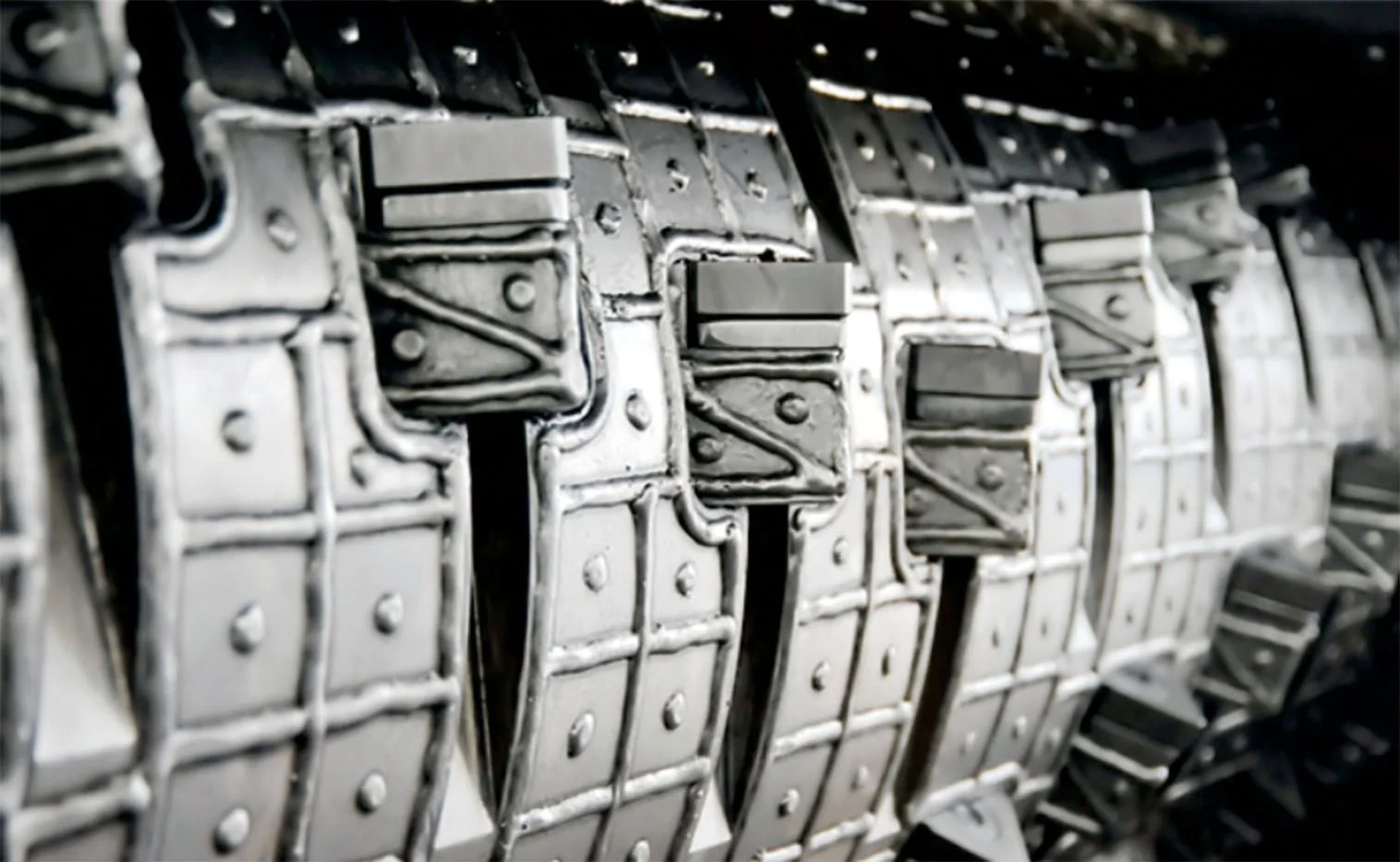

Rotor Hard Facing
| ZXS-T Series | ZXS-T 1500 | ZXS-T 2000 | ZXS-T 3000 | |
|---|---|---|---|---|
| lbs/hr | ||||
| Rotor Diameter | mm | 760 | 760 | 760 |
| Rotor Width | mm | 1500 | 1960 | 2760 |
| Rotor Speed | rpm | 41 | 41 | 41 |
| Drive Capacity | kW | 2 x 90 | 2 x 110 | On request |
| Rotor Knives | pcs | 76 | 96 | 136 |
| Stator Knives | rows | 1 or 2 | 1 or 2 | 1 or 2 |
| Screen Bars | mm | 80 | 80 | 80 |
| Screen Size | mm | >16 | >16 | >16 |
| Effective Area | mm x mm | 1005 x 1620 | 1005 x 2020 | 1005 x 2820 |
| Weight (approx.) | kg | 12300 | 15300 | 20500 |
| 12800 | 16500 | 21500 | ||
| Dimensions | ||||
| A | mm | 2300 | 2300 | 2300 |
| B | mm | 605 | 605 | 605 |
| C | mm | 2700 | 2700 | 2700 |
| D | mm | 1000 | 1000 | 1000 |
| E | mm | 1620 | 2020 | 2820 |
| F | mm | 3800 | 4240 | 5040 |
The ZXS-T Tire Recycling Shredder is specifically designed for processing complete or pre-shredded car and truck tires into smaller, uniform pieces. It efficiently separates rubber and steel using a variable knife gap system, making it ideal for tire recycling plants, rubber recycling operations, and RDF (Refuse-Derived Fuel) production. With its robust design and high throughput, the ZXS-T ensures reliable, continuous operation for heavy-duty recycling applications.
The ZXS-T Tire Recycling Shredder can process a wide range of tires, including passenger car tires, truck tires, tractor tires, and off-road vehicle tires. It is capable of handling both complete and pre-shredded tires, reducing them to smaller sizes for further processing or material recovery. It is suitable for both standard and heavy-duty tire recycling applications.
The ZXS-T Tire Recycling Shredder is widely used in industries such as tire recycling, rubber reclaim production, waste management, and alternative fuel (RDF/SRF) processing. It’s also utilized by automotive recycling facilities and environmental recycling plants that handle high volumes of end-of-life tires, helping convert waste tires into reusable rubber and clean steel for sustainable applications.
The ZXS-T Tire Recycling Shredder is designed for easy and reliable operation. It uses an intuitive control system and a tangential infeed design that eliminates the need for a hydraulic pusher, allowing smooth and consistent tire feeding. Maintenance is straightforward — the shredder features easy access to the cutting chamber, fast knife and screen changes, and durable wear-resistant components that minimize downtime. Regular inspection of knives, bearings, and screens ensures optimal shredding performance and long-term durability.
You can easily request a quote for the ZXS-T Tire Recycling Shredder by visiting the Contact Us page on the ZERMA America website or filling out the inquiry form on the product page. You can also reach our sales team directly by phone or email. Our experts will review your recycling requirements and provide a customized quote, including technical details and configuration options to suit your tire processing needs.
